Alfa Laval

LKH - The Premium Centrifugal Pump


lkhpump (1)The LKH pump is a highly efficient and economical centrifugal pump, which meets the requirements of sanitary and gentle product treatment and chemical resistance. LKH is available in twelve different sizes.

APPLICATIONS

The LKH pump is a highly efficient and economical centrifugal pump, which meets the requirements of sanitary and gentle product treatment and chemical resistance. LKH is available in twelve sizes, LKH-5, -10, -15, -20, -25, -35, -40, -45, -50, -60, – 70 a

Contact Us For More Info

Solid C - Standard Centrifugal Pump

SolidC-iconSolidC

Designed to meet the hygienic requirements of the the dairy, food and beverage, and personal care industries, SolidC is a standardized centrifugal pump for general applications, intermittent product pumping and CIP duties.


Solid value

The SolidC centrifugal pump is a standard duty pump for basic transport duties in hygienic applications. An exceptional value compared with other pumps in its class, it provides reliable, low-maintenance operation. With its hygienic design, cost-effective operation and quick, easy maintenance, the SolidC offers excellent value for money.

For more demanding duties, Alfa Laval offers the premium LKH centrifugal pump. Using our pump selection software, Alfa Laval or one of our sales and working partners can help you select the right pump for your specific application.

Solid hygienic design



SolidC centrifugal pumps ensure consistent performance and maximum cleanability. The pump interior is designed to provide control of surface contamination and feature O-rings with defined compression. Compliance with 3A, CE, FDA and EHEDG requirements provide an excellent level of hygiene.

Engineered for high product integrity, the SolidC has a semi-open impeller, which provides gentle product handling. Smooth crevice-free surfaces eliminate any dead zones where bacteria can thrive. In addition, the SolidC is easy to clean in place and employs FDA-approved elastomers.

Easy, low-cost maintenance

A few minutes are all that is required to change wear parts. Hassle-free replacement of the easy-to-access front-loading shaft seal, for instance, maximizes uptime and minimizes maintenance costs. Other features that contribute to solid maintenance routines and cost savings are the easy-to-disassemble clamp between casing and back plate and easy-to-mount O-ring.

Warranty

Alfa Laval provides a three-year warranty for all non-wearing parts, provided genuine parts are used.

Contact Us For More Info


MR - Liquid Ring Pump

MR_liquid_ring_pump_290x261

The MR range of pumps is specifically designed for pumping liquids that contain air or gas.
These pumps are most commonly used for CIP return applications in the food, dairy, beverage and pharmaceutical industries.

The MR has a unique construction which makes it perfectly suited to pump liquids with entrained gases. The MR is a well proven Alfa Laval technology that is highly suited to these applications.

The most common application for the MR is CIP return. This application contains is a mix of liquid and gas which needs to be pumped where standard pumps have difficulty.

Made from AISI 316L stainless steel and has a robust, heavy duty design which results in a long life.

Available in 4 models MR 166S,185S,200S and 300. The range can pump up to 80 m3/Hr and pressure of up to 5.3 bar. The MR features an "External" mechanical seal for maximum hygiene and one seal can fit up to 3 models thus reducing spare parts holding.

The pump is available with both IEC and NEMA standard motors and has CE and  3A certification.

Contact Us For More Info



SRU - Rotary Lobe Pump

SRU_rotary_lobe_pump_275x256

With its smooth, low-shear pumping action, the SRU is Alfa Laval’s core rotary lobe pump for the gentle handling of sensitive process fluids within the dairy, food and beverage, biotechnology and pharmaceutical industries.

Alfa Laval SRU rotary lobe pumps are carefully engineered to provide reliable performance, trouble-free operation and superior energy efficiency for demanding applications. It is an excellent choice for duties that require contamination-proof pumps to meet high standards of hygiene, low-shear and low-pulsation operation. This EHEDG-approved pump handles both Cleaning in Place and Sterilization in place, and can be supplied with thorough documentation to support rigorous validation requirements.

For even more demanding hygienic and ultra-clean duties, Alfa Laval offers the SX rotary lobe pump.

Consistent performance, minimal risk of contamination

SRU rotary lobe pumps are designed with features that maximize performance and minimize the risk of contamination. These include a defined compression front cover sealing, rotor nut retention design, drainable pump head and ultra-clean surface finishes.

Safeguarding product quality

Understanding of flow patterns is vital to ensure high efficiency fluid transfer with low pulsation, low shear and low noise characteristics. Alfa Laval employs Computational Fluid Dynamics (CFD) to establish exact geometry for the rotors and rotor case.

Greater flexibility and application fit

The modular design of the SRU provides greater flexibility to configure exactly the right solution for specific process requirements.

To meet different process requirements, the SRU features an R90 external shaft seal, which may be specified in various materials and configurations in order to ensure the correct shaft seal for the application. Alternatively the SRU can be fitted with Hyclean mechanical seals as well as other seal solutions.

In addition to a broad range of models and capacities available in horizontal or vertical porting, the SRU has a wide selection of options, including standard and custom seals, heating/cooling saddles and jackets, an integrated pressure relief valve and a rectangular inlet for pumping high viscosity fluids.

Robust construction – low maintenance

To deliver reliable operation and low maintenance the SRU features a robust gearbox construction with heavy-duty shafts, torque locking assemblies and taper roller bearings throughout.

Supply and delivery

The SRU range is available with twelve different pump head displacements, flow rates up to 106 m³/h, differential pressures up to 20 bar, temperatures up to 200°C and port sizes from 25 to 150 mm in diameter.

Certification, specification and standards

SRU rotary lobe pumps comply with EHEDG, 3-A, 3.1 and FDA hygienic standards and have ATEX approval for use in explosive environments. For more information, please consult the documentation provided.

Contact Us For More Info

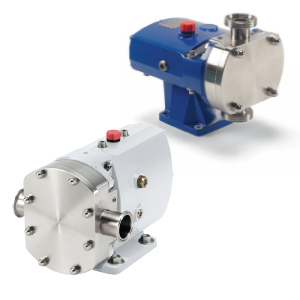

SX - Rotary Lobe Pump

SX_rotary_lobe_pump_300x300

The SX is Alfa Laval’s premium rotary lobe pump designed for gentle transportation of process fluids in hygienic and ultra-clean applications in the biotechnology and pharmaceutical industries, health and beauty, and demanding food applications.

With the SXs multi-lobe rotor geometry it offers low pulsation and gentle pumping. This makes it the best choice for transporting sensitive products that require gentle handling to minimize shearing. This EHEDG-approved pump is designed for both Cleaning in Place and Sterilization in Place.

Protecting end-product quality

Low pulsation, low shear and low noise characteristics, while ensuring efficient fluid transfer, are trademarks for the SX pump. This high level of performance has been achieved through a detailed understanding of flows and the exact geometry of the rotors and rotor case. For this Alfa Laval employs Computational Fluid Dynamics (CFD).

Enhanced cleanability

SX rotary lobe pumps are designed with features that maximize performance and minimize the risk of contamination. These include a low-profile rotor nut, hygienic front-loading mechanical seals, defined compression front cover sealing, fully drainable pump head with 3° fall angle, and sanitary or ultra-clean surface finishes.

Cleanablity hand-in-hand with low maintenance

Designed for maximum cleanability and ease of access, the SX pump is a low maintenance solution. Alfa Laval manufactures all pump parts, including the rotor case and high-precision rotors. This facilitates maintenance and guarantees full interchangeability of spare rotor parts.

For reliable operation and lower maintenance the robust gearbox construction comes with heavy-duty shafts, torque locking assemblies and taper roller bearings throughout. The gearbox’s universal design provides the flexibility of mounting the pumps with inlet and outlet ports in vertical or horizontal position.

Supply and delivery

Available in 14 different models, SX rotary lobe pumps are capable of handling of a wide variety of viscosity and temperature requirements, flow rates up to 115 m3/h, pressures up to 15 bar and temperatures up to 150°C. A wide range of seals is available to ensure that the right seal is selected for the specific application.

Certification, specification and standards

All SX rotary lobe pumps comply with EHEDG, 3-A, 3.1 and FDA hygienic standards and have ATEX approval for use in explosive environments. For more information, please consult the documentation provided.

Contact Us For More Info

Optilobe - Standard Tri-lobe Rotary Lobe Pump

optilobe_150x150

OptiLobe rotary lobe pump

The OptiLobe is an optimized rotary lobe pump that is a cost-effective alternative to Alfa Laval SRU and SX rotary lobe pumps. Designed for standard duties within the food, dairy and beverage industries.


Simplicity at its best

Simplicity of installation, operation and maintenance are hallmarks of the OptiLobe, Alfa Laval’s basic rotary lobe pump. Universal mounting with inlet and outlet ports in vertical or horizontal position makes installation very simple.

Operation is just as straightforward and reliable thanks to the robust gearbox construction. Fully interchangeable front-loading seals provide fast access for inspection or replacement without pipe work disassembly.

Solid product quality

The OptiLobe offers reliable fluid transfer and gentle product handling in combination with low pulsation, low shear and low noise characteristics. The pump is suitable for most general application as well as for Cleaning-in-Place.

Low total cost of ownership

The OptiLobe not only reduces your initial capital investment but also reduces total cost of ownership. The simple, robust low maintenance design provides quick return on investment.

Robust construction

The OptiLobe features a robust gearbox construction with heavy-duty shafts, torque locking assemblies and taper roller bearings throughout. This delivers reliable operation and reduces maintenance.

Contact Us For More Info

SCPP - (Circumferential piston pump)

SCPP circumferential piston pump

The SCPP is ideally suited for transporting very low viscosity products at higher discharge pressures for food, beverage and other hygienic applications.


Comprehensive circumferential piston pump range

The Alfa Laval SCPP range consists of two positive displacement pump ranges designed especially for transporting low viscosity products at higher discharge pressures. While rotary lobe pumps remain the preferred positive displacement solution, the SCPP is a solid choice for applications where circumferential piston pumps have been widely used in the past.

The broad range meets a wide spectrum of requirements under various working pressures:
SCPP 2_195X195SCPP 1 is a robustly designed model that is well-suited for strip-clean applications. It has 14 displacements, capacities up to 450 USGPM (102 m3/h) and differential pressure to 400 psi (28 bar).









SCPP 2_195X195SCPP 2 features enhanced CIP options, making it better suited for Cleaning–In-Place. It has 11 displacements, capacities up to 310 USGPM (70 m3/h) and differential pressures up to 500 psi (34 bar).

Handles challenging suction conditions

The SCPP pumps feature large inlet and outlet ports, which help reduce pressure losses as products enter the pump. These features, combined with circumferential piston pump technology results in reduced net positive suction head required (NPSHr). This significantly reduces the risk of cavitation and subsequent pump damage.

Higher efficiencies on low viscosities

Close clearances between rotor and rotorcase reduce slip when pumping low viscosity liquids at higher discharge pressures. This improves volumetric efficiency on low viscosity liquids and helps reduce flow rate variance under variable backpressures.

Seal options

For greater flexibility, the SCPP range gives you a wide range of options to enable you to choose the right seal for your particular application.

For the SCPP 1, choose from a single O-ring, double O-ring with flush, single mechanical seal or double mechanical seal with flush, which are available in various materials. The O-ring seal is particularly suited for applications where pumps are frequently disassembled for manual cleaning. The O-ring seal also enables quick removal of the rotorcase and reduces the risk of damage during disassembly.
The SCPP 2 offers two seal types: a single mechanical seal or double mechanical seal with flush, which are available in various materials.

Rotor options

The SCPP pump comes with twin-wing rotors in a non-galling alloy material as standard, which are suitable for most pump applications. If the product to be pumped contains large solids, a single-wing rotor is available as an option.

Warranty

Alfa Laval provides a one-year warranty for all non-wearing parts, provided genuine parts are used.

Contact Us For More Info

For the biotech and pharmaceutical industry:

Solid C UltraPure - (Standard Centrifugal Pump)

SolidC_UltraPure_200_2

SolidC UltraPure

The special features of SolidC UltraPure centrifugal pumps include an external shaft seal and spring, a defined-compression O-ring on the back plate, crevice-free design and special standards-compliant materials throughout.


Standardized and affordable

The SolidC UltraPure is a standardized centrifugal pump design that is ideal for use in duties such as Cleaning In Place (CIP) and intermittent product pumping. It is the prime choice for installations where the combination of hygiene and purchase price is the key criterion.

Easy to keep clean

SolidC UltraPure centrifugal pumps are designed with features that ensure consistent performance as well as eliminating any risk of contamination. In-depth process knowledge has resulted in a design that avoids any crevices in which contamination might accumulate or bacterial growth can build up. This makes the SolidC quick and easy to clean, saving time, cleaning agents and consumption of high-purity water.

Just like the premium LKH UltraPure, the SolidC UltraPure features an external shaft seal and a semi-open impeller with balance holes. Together with a crevice-free design, these are three key features in ensuring end-product quality.

Supply and delivery

SolidC UltraPure units are available in four different sizes. All standard components are kept in stock to shorten lead times and to avoid any unnecessary downtime.

Biopharm documentation package

All Alfa Laval biopharm components are delivered with Q-doc product documentation based upon GDP (good documentation practice). The Q-doc package comprises equipment manuals, factory acceptance tests/performance test, quality and manufacturing procedures, relevant material certificates and the necessary parts and service information.

Warranty

Alfa Laval provides a 3-year warranty on all non-wearing parts, provided genuine parts are used.

Contact Us For More Info

MR UltraPure - (Liquid Ring and CIC Return Pump)

MR_ultrapure_195x

MR UltraPure

Designed to meet the specific demands of the biotech and pharmaceutical industry, MR UltraPure is the well-proven liquid ring pump for CIP return pump duties or for the efficient transfer of liquids containing gases.


Proven performance

The MR UltraPure is a reliable, low-maintenance self-priming liquid ring pump specifically designed for transferring liquids that contain air or other gases or for use as a CIP return pump for the complete removal of fluid from tanks. Surfaces, drainage capabilities and materials are optimized and documented to match the high demands of the biopharm industry.

The MR pump is also available in a standard version suitable for general food and beverage applications etc.

High cleanability

Crevice-free design and smooth surfaces prevent bacterial build-up and simplify cleaning. The external shaft seal also secures maximum cleanability by placing difficult-to-clean parts on the outside of the pump. This saves time and reduces consumption of cleaning agents and high-purity water.

Safe, non-reactive materials

The materials used in the MR UltraPure have been carefully selected to secure high product integrity and to minimize the risks of reactive materials. Materials made of steel are fully traceable in accordance with the EN10204 3.1 standard. Elastomers comply with the U.S. Food and Drug Administration (FDA) requirements and are tested and certified in accordance with USP Class VI section 87 and 88. In addition, all elastomers are traceable by compound identification number. The external shaft seal ensures that wear particles from the shaft seal are directed by centrifugal force to the outside and thus do not come into contact with the medicinal product. This attention to detail provides full control, minimizes risks during maintenance and facilitates change control procedures.

Low and easy maintenance

With few wear parts, the external shaft seal is designed for high performance and low maintenance. The centrifugal forces press the liquid to the shaft seal area which provides good cooling and lubrication and prolongs the service life of the seal. The stationary seal ring is solidly affixed to the back plate, providing perfectly aligned seal surfaces even after long periods of operation and potential pressure shocks or vibration in the system. The true front-loaded design ensures that the seal can be quickly and easily replaced.

Total peace of mind with complete documentation for validation

All equipment and components in the Alfa Laval BioPharm portfolio are supplied with Alfa Laval Q-doc, a comprehensive documentation package that provides full transparency of the entire supply chain, from raw material to final equipment delivery. This smoothes purchasing and installation procedures as well as facilitates qualification, validation and change control procedures. Based on GDP (Good Documentation Practice), Alfa Laval Q-doc covers every aspect of BioPharm equipment supply and provides customers with transparent and well-documented quality assurance of the sourced equipment.

The Q-doc package for MR UltraPure comprises equipment manuals, performance tests, quality and manufacturing procedures, material certificates, traceability of product wetted parts and the necessary parts and service information. This attention to detail maximizes uptime and minimizes risk.

Supply and delivery

MR UltraPure liquid ring pumps are available in four different sizes with capacities up to 80 m3/h and pressures up to 5.3 bars. All standard components are kept in stock to shorten lead times and prevent unplanned downtime. Standard pumps can be supplied within one week.

Warranty

Alfa Laval provides a three-year warranty for all non-wearing parts, provided genuine parts are used.
